4-Zone Mitsubishi Ductless Heat Pump Installation in Minneapolis, MN
This Minneapolis project began with a homeowner looking to replace an aging 28-year-old air conditioner and move toward a more efficient electric comfort solution after adding solar to the home.
The original plan considered a new ducted heat pump, but after a closer evaluation, it became clear the home’s existing duct system was not properly designed to support it. With major return-air limitations and no returns serving the main or second floor, a Mitsubishi 4-zone ductless system became the better solution.
The result is a cleaner, more flexible comfort system with independent room control, high-efficiency performance, and a layout designed around how the home actually functions.
A Better Comfort Strategy Than Forcing a Heat Pump onto Poor Ductwork
This project is a strong example of why proper system design matters more than simply replacing equipment with the newest option. The homeowner wanted to replace an older AC system with a new heat pump solution, but the home’s duct system lacked the sizing and return-air design needed to support a ducted retrofit properly.
VisionAiry Heating & Cooling evaluated the home and recommended a Mitsubishi 4-zone ductless system instead. This allowed the main living room and three second-floor rooms to each receive their own dedicated indoor unit, creating a far more effective comfort strategy than trying to force one ducted system through undersized and poorly configured ductwork.
The installation included one Mitsubishi MXZ outdoor unit, four indoor high-wall units, routed line sets, dedicated electrical work, exterior line-hide, permitting, and full commissioning for long-term performance and usability.
Designed Around the Home
Instead of forcing a ducted heat pump into a weak duct system, the comfort strategy was redesigned to better match the home’s layout.
Four Independent Zones
The living room and three upstairs spaces now each have their own dedicated Mitsubishi indoor unit for more precise control.
CleanSolar-Friendly Efficiency Retrofit Design
The new all-electric cooling and heating approach aligns well with the homeowner’s interest in improving efficiency after installing solar.
BEFORE THE UPGRADE
An Aging AC System and Ductwork That Was Not Ready for a Heat Pump

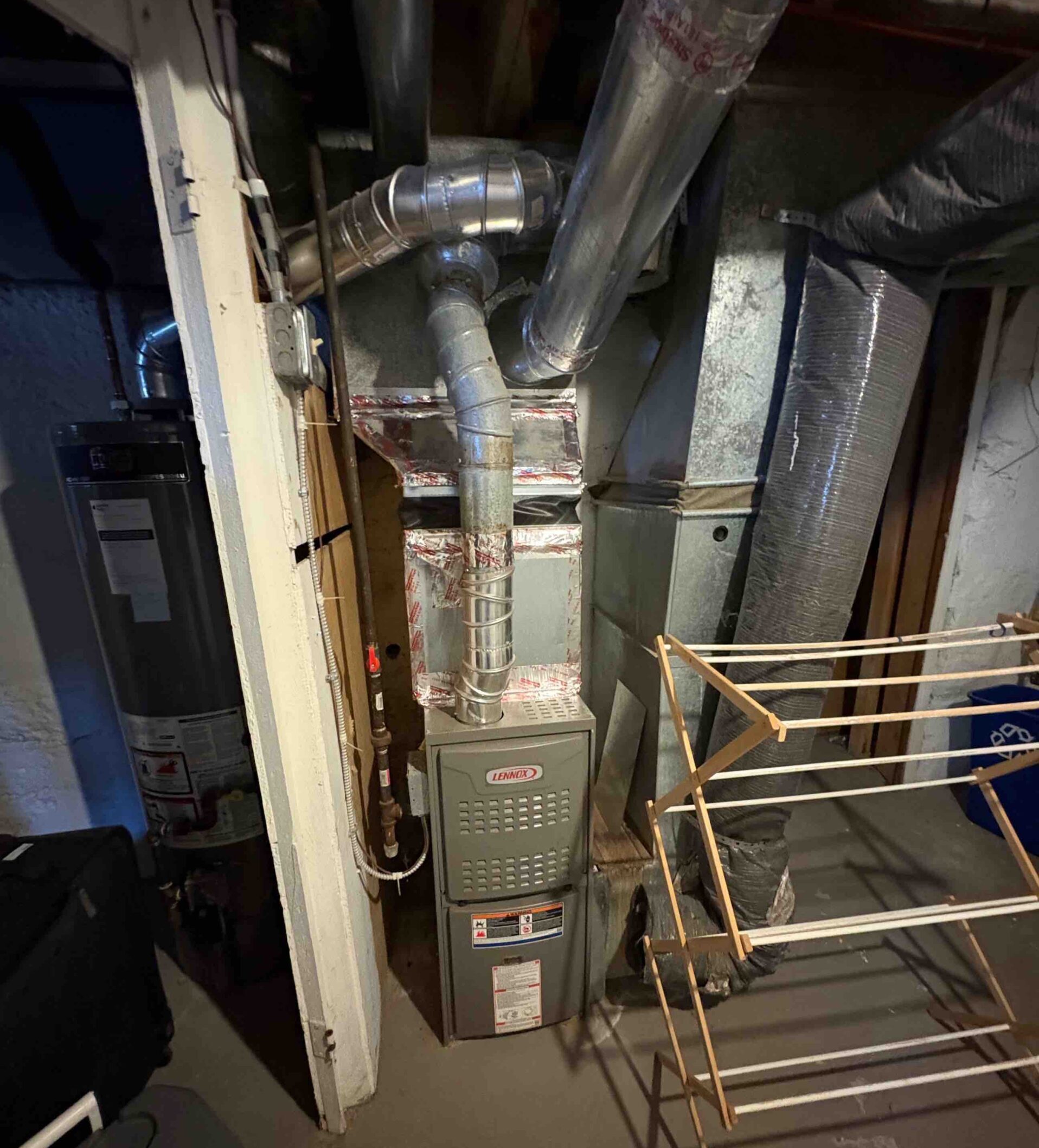

Before the upgrade, the home had a 10-year-old furnace and a 28-year-old air conditioner. The homeowner wanted to move toward a newer electric comfort solution and initially explored replacing the AC with a ducted heat pump.
After inspection, it became clear the existing duct system was lacking in both sizing and overall return-air design. There were no return ducts serving the main or second floor, making a ducted heat pump retrofit a poor fit for long-term comfort and performance. Rather than compromise the outcome, VisionAiry recommended a more appropriate multi-zone ductless solution.
Existing air conditioner was 28 years old
Homeowner wanted to move toward a heat pump solution
Existing duct system was undersized for a proper ducted retrofit
Return-air design was inadequate
No return ducts serving the main or second floor
Home needed a better comfort strategy, not just new equipment
THE INSTALLATION
A 4-Zone Mitsubishi Ductless System for Main Floor and Upstairs Comfort

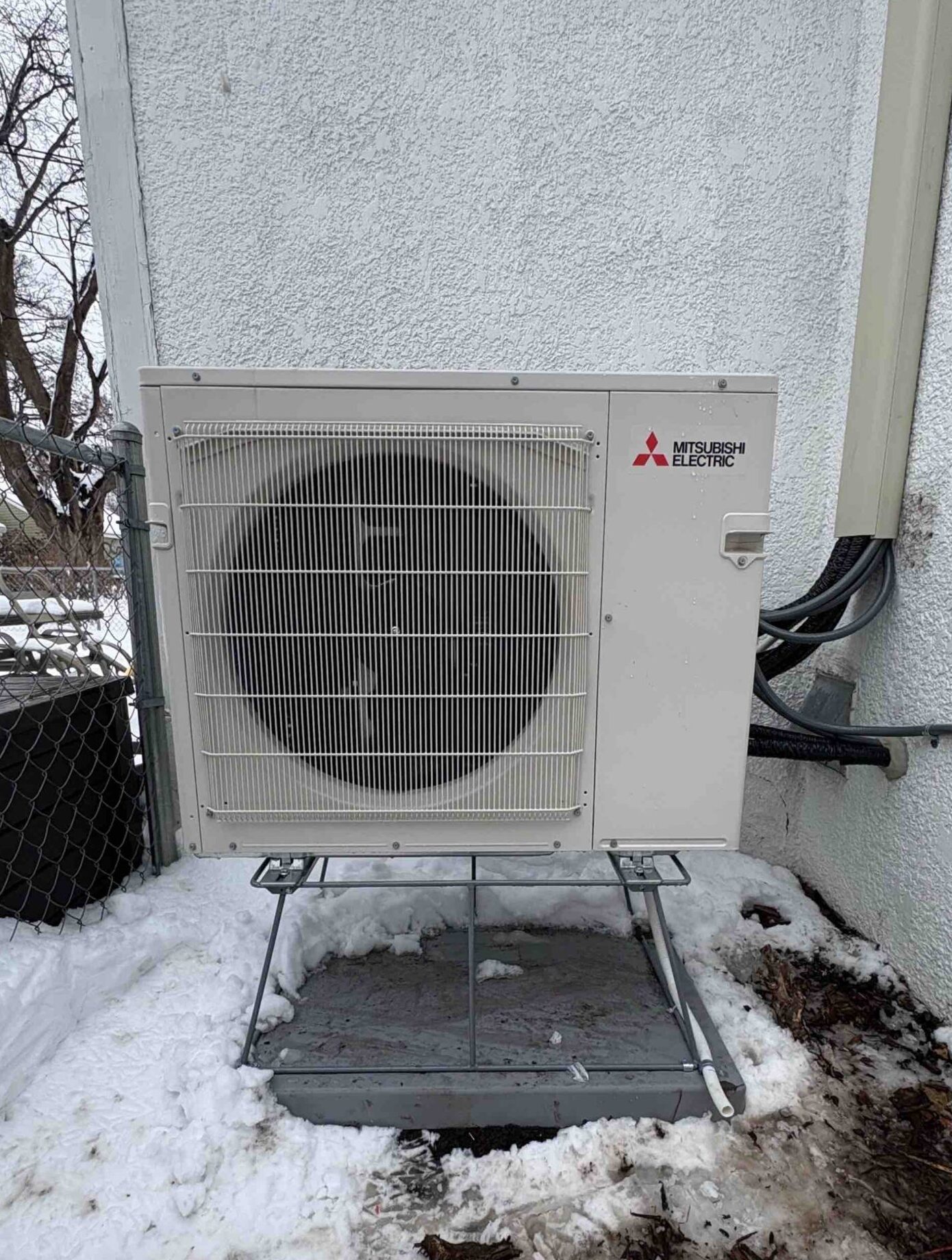

VisionAiry Heating & Cooling installed a Mitsubishi MXZ-4D30NL multi-zone outdoor heat pump connected to four indoor MSZ-GX series high-wall units. The system was designed with one 12,000 BTU indoor unit in the main floor living room and three 6,000 BTU indoor units serving the second-floor front bedroom, rear bedroom, and rear office.

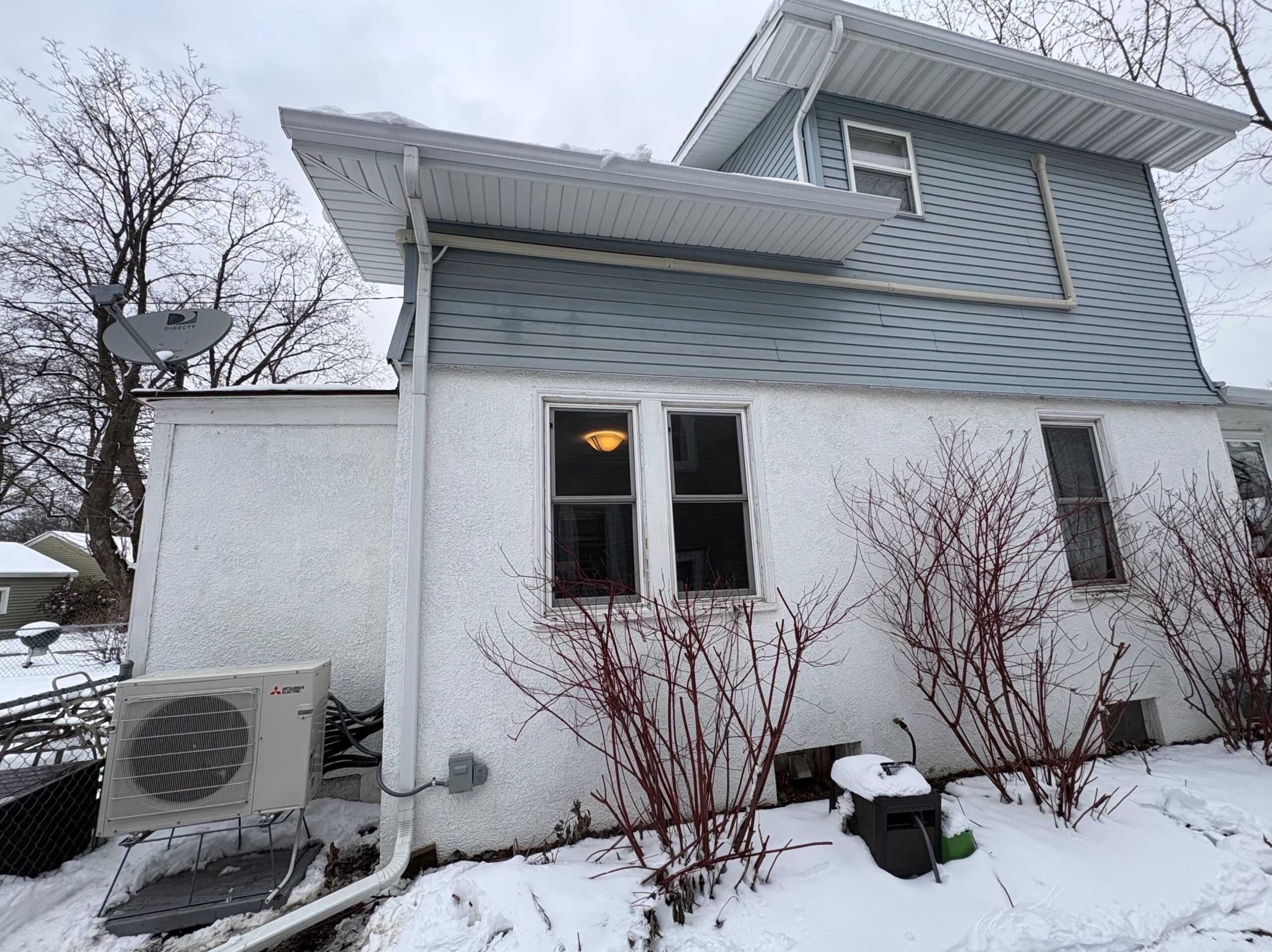

Three indoor units were routed from the south wall, with one routed on the north wall and down through the basement to support clean installation and proper connection to the outdoor unit on the south side of the home. Exterior line sets were covered in paintable PVC composite line-hide for a clean finished appearance. The complete project included electrical, permits, installation, testing, and final walkthrough.
Main Floor Living Room Zone

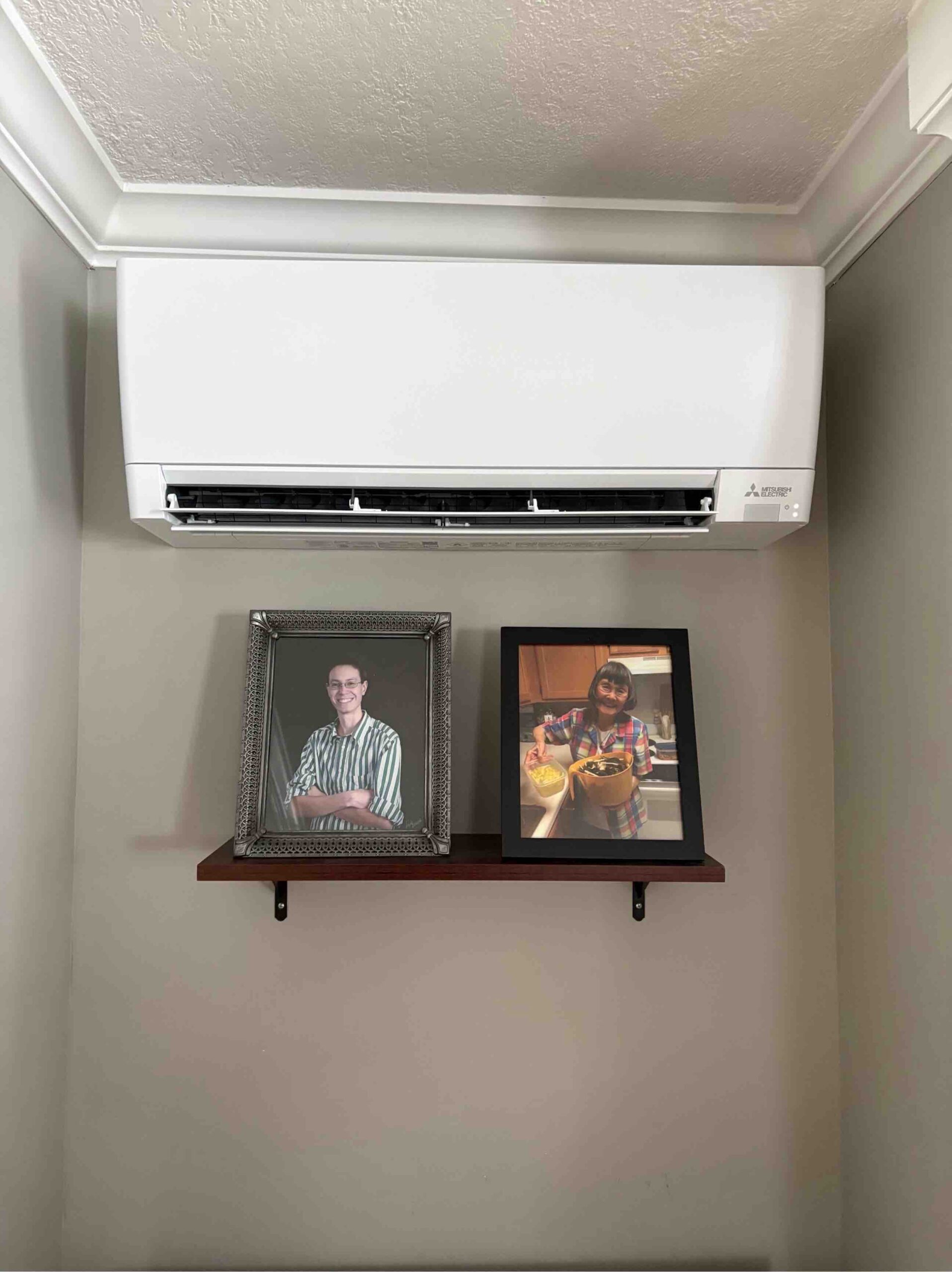

A Mitsubishi MSZ-GX12NL indoor unit was installed to provide dedicated heating and cooling for the main living area.
Three Upstairs Room Zones
Each second-floor bedroom and office received its own Mitsubishi MSZ-GX06NL indoor unit for room-by-room comfort control.
Clean Exterior Routing
Exterior line sets were organized and protected with paintable line-hide for a more polished and professional finished look.
SYSTEM DESIGN
Why Ductless Was the Right Choice for This Home
A ducted heat pump is not always the best answer simply because a home already has ductwork. In this project, the existing duct system did not have the sizing or return-air layout needed to support a high-performing ducted heat pump installation.
By shifting to a ductless multi-zone design, the homeowner gained better control, more targeted comfort, and a system layout that worked with the home instead of against it. That decision avoided forcing a compromised ducted solution and created a much stronger long-term result.
Avoided relying on undersized ductwork
Solved major return-air limitations
Added room-by-room temperature control
Improved comfort strategy for both floors
Better matched the layout of the home
Created a cleaner long-term retrofit solution
PROJECT RESULTS
More Control, Better Comfort, and a Smarter Retrofit Strategy
The completed system gives the homeowner a much more effective comfort solution than a compromised ducted retrofit would have provided. The living room and three second-floor spaces now each have dedicated heating and cooling, allowing the home to be conditioned based on actual room usage instead of depending on inadequate duct distribution.
This project reflects VisionAiry Heating & Cooling’s focus on engineered comfort, honest system evaluation, and recommending the right solution for the home rather than simply following the first equipment idea on the table.
Four independently controlled comfort zones
Better fit for the home than a ducted heat pump retrofit
Efficient all-electric heating and cooling solution
Clean installation with protected exterior line routing
Improved flexibility for different rooms and living spaces
Long-term warranty coverage for equipment and labor
Better fit for the home than a ducted heat pump retrofit
